# Free Area of Wall Louvers

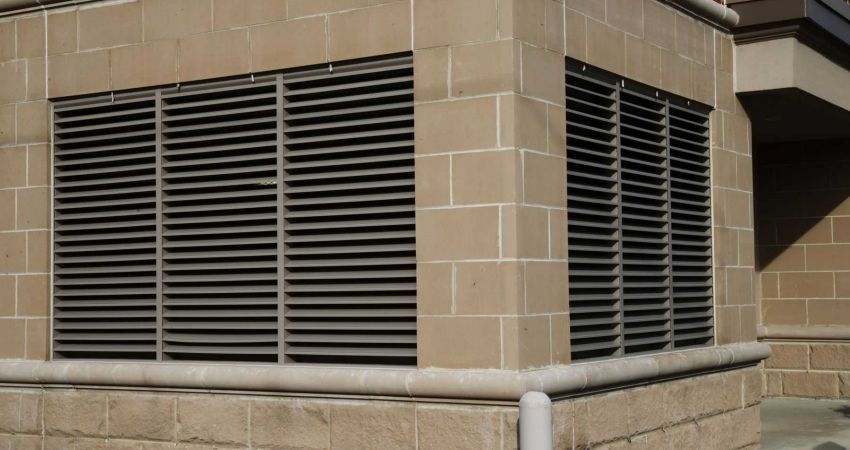

Every louver, no matter what size, has a calculated free area. By subtracting any obstructions to airflow (frames and blades) from the overall opening size we get a net result - free area. The typical size for louver comparison is 48" Wide x 48" High - which is an industry standard. Never assume that sizes other than this will have the same percentage free area.

Free area varies widely by size, options (special shapes and screens), and louver model. Each of these has an impact on the free area and should be considered when selecting louvers for your application.

Additional information on the impact of free area on louver selection, please visit the linked page how louvers work.

Size

Size plays the most significant role in free area variation. Most people think of percentage free area as a constant, regardless of size. This is far from true, however. For example, the frame of the louver will take up more of the free area (as a percentage) as the louver size reduces (see Figure 1.1 below).

Even with a thin frame style (3/4" on all Architectural Louvers models) the percentage free area is significantly reduced on smaller size louvers. Keep in mind that we still need to subtract the blade obstruction from these numbers.

Special Shapes

The shape of the louver will have an effect on the free area percentage. A slope or curvature eliminates some functional portion of each blade at the connection to frames, thereby reducing the free area. We have selected a comparison between a rectangular and triangular louver to demonstrate this reduction.

Because the blade is sloped from front to rear AND it is being mitered to fit flush to an adjoining frame, some of the free area is eliminated (the rear edge of each blade is shorter than the front edge). The angle slope of the blade and the pitch of the triangle will determine the free area reduction. As the slope of the blade increases (45 degree blade slope vs. 35 degree blade slope) or the pitch of the triangle decreases (3/12 pitch vs. 8/12 pitch), the "DEAD" portion of the blade increases, reducing the overall free area of the louver.

Bird and Insect Screens

Many assumptions are made regarding rear screens on louvers. A very limited amount of industry testing has been done and the data is only relevant for new, clean screens. Dirty screens will eventually reduce the free area significantly.

In general, the free area of a louver is unaffected by a clean screen. AMCA (Air Movement and Control Association) tested and published results for the effect of screens on louver airflow and water penetration in their January 1994 Techspecs document. These tests demonstrated a slightly positive or negative effect on airflow through the louver (depending on the type of screen). Pressure loss increased 11% to 17%. Water performance improved 12% to 33%. But screens under airflow will eventually get embedded with dirt and grime, so most of the industry data is not relevant to real world application.

For small mesh screens (under 1/2" mesh) used at air intake locations, the buildup of dirt and grime can reduce the free area 10% to 90%. If left without maintenance, the screens will eventually block most of the airflow. If access to the screens is limited or maintenance is questionable, large mesh screen should be used.

Some good practices in screen selection:

1. Air Ventilation only: any screen selection is acceptable.
2. Air Intake (fan forced): Since the air in not yet filtered, the potential for accumulation of dirt and grime is high. Large opening bird screen (3/4") is the best choice. If any small mesh screen (1/2", 1/4", or insect screen) is desired for this application, a regular cleaning of the screen is required (once a month is recommended).
3. Air Exhaust (fan forced): If the air has been filtered, any screen can be used. If small mesh screens are desired, a regular cleaning of the screens should be scheduled (twice a year). For unfiltered air, use the same precautions as Air Intake.

Louver Model

Every louver model has a different blade and blade spacing, so the free area will vary based on the characteristics inherent in that design. While free area is not the only consideration in selecting which louver to use, it can have a dramatic impact on performance.

In general, shallow slope blades allow for higher free areas based on simple trigonometry. To prohibit sight through between blades, the shallow slope will also require narrow blade spacing (more blades for the same height). This increases the cost of the louver.

Most commercial louvers have free areas between 30% and 60%. There are many residential style louvers that have free areas below 30%. Architectural Louvers makes many styles of louvers. The free areas are listed below:

Performance Table is based on a test size of 48" wide x 48" high for comparison purposes:

 Product Model Free Area First Point of Water Penetration (free area velocity) Overall Performance (C.F.M.) Pressure Loss at this velocity (inches water gauge) E6JN 69.1% 915 fpm 9014 cfm 0.12 E4DP 59.3% 930 fpm 8826 cfm 0.12 E4JP 58.4% 960 fpm 8976 cfm 0.13 E6DP 57.7% 1046 fpm 9655 cfm 0.13 E6JP 57.3% 1123 fpm 10298 cfm 0.18 E4DS 56.0% 930 fpm 8333 cfm 0.13 E4WS 56.0% 346 fpm 3100 cfm 0.02 E6JF 54.4% 1020 fpm 8884 cfm 0.18 E2WV 53.8% 889 fpm 7645 cfm 0.24 E6WH 51.4% >1250 fpm 10275 cfm 0.21 E6WF 51.1% 1081 fpm 8832 cfm 0.14 E4WH 50.6% >1250 fpm 10113 cfm 0.25 E4JS 50.4% 888 fpm 7157 cfm 0.15 E2DS 49.4% 889 fpm 7032 cfm 0.12 E2JS 48.7% 725 fpm 5648 cfm 0.08
