Louvered Sunshades

Sunshades are an attractive means to obstruct undesired sun and heat gain while allowing natural light into your building. Sunshade louvers add an attractive design element to your building. Numerous blade shapes, blade spacings, and trim profiles allow a design to suite your project requirements. Use the interactive guide below to view the standard blade and trim options.



H6A26 image
H6A26 image
H6A36 image
H6A46 image
H6TS6 image
H6JN6 image
H6JP6 image
Blade Type:
Blade Angle:
15 degree
25 degree
35 degree
42 degree
Trim Type:
H6
Blade Angle:

FIXED

Blade Spacing:
Blade Spacing:
Blade Spacing:
Blade Spacing:
Blade Spacing:
Blade Spacing:
Blade Spacing:

Sunshade Selection

The objective of a sunshade is to block the entry of direct sunshine into your building throughout the cooling season, while allowing direct sunlight during the heating season. This combination provides the greatest benefit for reducing energy consumption over the life of your building. Achieving this combination depends on several factors that can be viewed in our How Sunshades Work section. Use the interactive guide above to view available blade and trim options.

Sunshades should blend with other building design elements and provide the desired appearance. Choose from our array of blade profiles, blade spacings, and trim styles to add an attractive architectural element to your building.

A variety of finishes are available from our Sunshade Finishes selection chart. Sunshades can be painted with a baked enamel or Kynar 500 finish, or have an anodized finish applied. A variety of standard colors are available. Custom colors can be selected by sending us a color chip. We will use our computer color match system to precisely match the sunshades color to other building facade components.

Sunshades are commonly specified in project documents under these divisions:
10 7100 Exterior Sun Control Devices (sometimes listed as 10 71 00, 107100)

Price Comparison

The louvered sun control device prices vary by model. We have included a comparison of prices for the various models to assist in product selection (see chart below).

Select the louvered sunshade models by price:

Product Model
Price Compare*
Least Expensive
2% more than H6JN8
13% more than H6JN8
20% more than H6JN8
25% more than H6JN8
25% more than H6JN8
25% more than H6JN8
25% more than H6JN8
27% more than H6JN8
40% more than H6JN8
50% more than H6JN8
50% more than H6JN8
50% more than H6JN8
50% more than H6JN8
52% more than H6JN8
53% more than H6JN8
90% more than H6JN8
90% more than H6JN8
90% more than H6JN8
90% more than H6JN8
95% more than H6JN8

*Price values for sunshade are for comparison purposes only. Actual sunshade quotation prices may vary depending on the sizes required and the options selected.

Installation

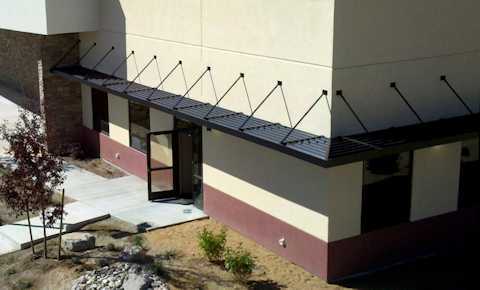

Installation for Architectural Louvers sunshades is simple. Each sunshade is equipped with outriggers for mounting to the building structural framing with mounting brackets (provided). Applicatons with larger sunshades require rigging support, which may be provided with your order.
