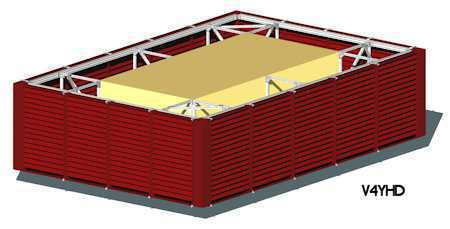

V4YHD Equipment Screen is a sight proof louver vision barrier that mounts directly to an air handler. This configuration eliminates the requirement for additional structural supports through the roof system of a building. Louver blades run horizontal in the hinged louvered doors - allowing full access to the air handler.

Features:

• Made to order in panel sizes 24" wide x 24" high up to unlimited wide x 96" high
• Made from heavy gauge 0.081" thickness aluminum extrusion
• 3.50" blade spacing
• Sight Proof "Y" blade
• Hinged louver panels with padlock hasp for access
• Heavy gauge modular structural framing for mounting directly to an air handler

Specs:

• 32% free area for a 48" wide x 48" high panel
• 30 psf wind load rating (approx. 100 mph)

Options:

• A variety of metal finishes including paint and anodizing
• Higher wind load ratings

Visibility through this model equipment screen is 0% at all sight lines, no matter the angle of viewing.





All doors have 180 degree swing

All louvered panels open for full access to the air handling unit

Sight proof from all angles

Product Specific Literature:

• Technical Literature
• 3 Part CSI Specification (.rtf)
• CAD drawing (.dwg)

Other Supporting Documents:

• Installation Instructions (.pdf)
• Available Finishes
• Product Brochure (.pdf)
• Wind Load Characteristics (.pdf)
• LEED information
